Hebei Zhengneng Boiler Equipment Co., Ltd. was established in August 2013, is a focus on the development, production and sales of science and technology production enterprises.Our company has purchased laser CNC cutting machine, CNC drilling machine, automatic submerged arc welding, automatic cylinder circular seam welding machine, real-time online imaging testing and other advanced processing and testing equipment from home and abroad, which provides reliable guarantee for excellent product quality.
Why Choose Us
Professional technology
Backed by a dedicated R&D team, every product undergoes meticulous development and rigorous quality assurance, ensuring the highest level of professionalism and reliability.
Custom made
We offer a wide variety of specifications for you to choose from, and we also provide customized products tailored to your specific needs, ensuring comprehensive solutions to meet all your requirements.
Honors and Qualifications
The company has obtained an A2-level pressure vessel license, an A-level boiler manufacturing license, a pipeline pressure fitting license, and GB2 and GC2 pipeline installation licenses.
Our Service
The company has a comprehensive after-sales service network to provide full support for your needs.
|
Project Item |
Specification Standard Specification |
|
Tank material |
Q235/5.0mm |
|
Girder material |
Q235B |
|
Shape |
Rectangular circular type |
|
Deadweight |
50000 |
|
Curb weight(kg) |
10000 |
|
Head thickness |
6.0mm |
|
Corrugated plate |
1.8mm The outside of the tank is completely closed with corrugated plates |
|
Tank thickness |
5.0mm |
|
Design pressure (Mpa) |
0.175 |
|
Design temperature (℃) |
- 40 ℃ to 230 ℃ |
|
Working pressure (Mpa) |
0.09 |
|
Operating temperature (℃) |
230 ℃ |
|
Corrosivity |
0 |
|
Ball valveAir tight test pressure (Mpa) |
0.12 |
Size
Bitumen tanks come in various capacities, typically ranging from 10,000 liters to 50,000 liters. The most common sizes include:
10,000 to 20,000 liters
Ldeal for small-scale projects or where space is limited.
20,000 to 30,000 liters
Suitable for medium-scale operations, balancing capacity and space efficiency.
30,000 to 50,000 liters
Best for large-scale projects requiring substantial bitumen quantities.
Types of Asphalt Tank
Fixed and Mobile
In terms of mobility, there are fixed bitumen tanks and mobile bitumen tanks. The former can be firmly installed in the construction site, suitable for long-term storage, while the latter featuring lightweight and movability can meet the temporary or short-term storage needs, especially suitable for users who need to change their workplace frequently.

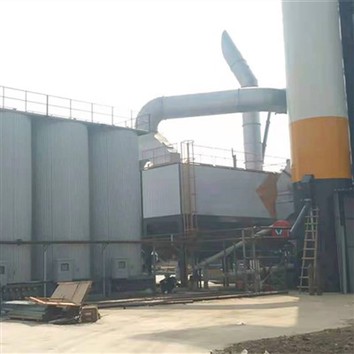

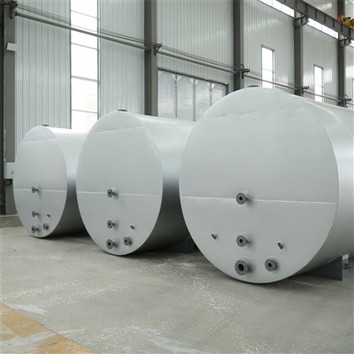

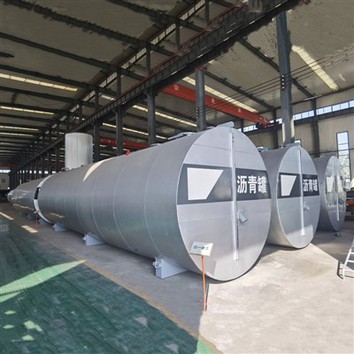

Horizontal and Vertical
Horizontal bitumen tanks and vertical bitumen tanks are divided by structural form. The former can be placed horizontally and has a large storage capacity, making it suitable for large-scale storage, while the latter needs to be installed vertically and can save floor space, so it is suitable for space-limited scenarios.

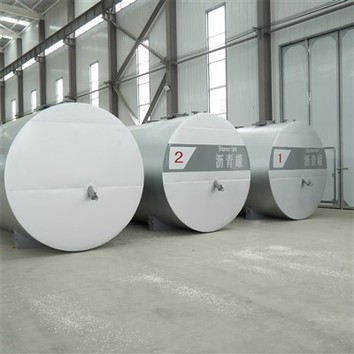

Storage-specific and Transport-specific
By purpose of usage, bitumen tanks can be further sub-divided into storage-dedicated bitumen tanks and transport-dedicated bitumen tanks. The former focuses on long-term, stable bitumen storage, while the latter is specially designed for bitumen transport to ensure the safety and stability during transportation.

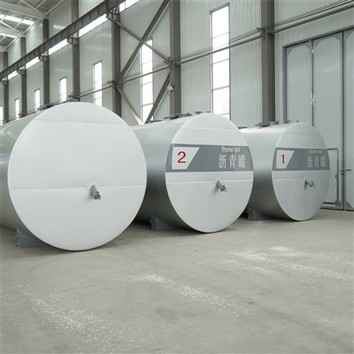

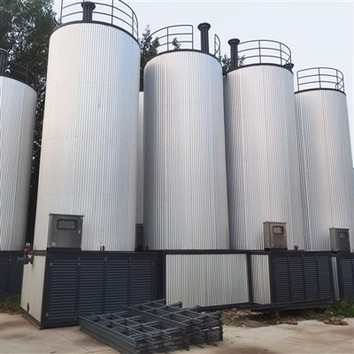

Direct Heating and Thermal Oil Heating
In accordance with the heating method, bitumen tanks are divided into the direct heating ones and thermal oil heating ones. The former can directly and efficiently heat bitumen, but the temperature control requirements are higher, whereas the latter are indirectly heated by thermal oil, which allows for more accurate temperature control, therefore suitable for users who require high-quality bitumen.
Structure and Characteristics of Bitumen Tanks
Tank
Responsible for storing bitumen, with high strength and good sealing to prevent leakage and impurity intrusion.
Heating System
Controls the heating temperature to keep the bitumen in the best working condition to fulfil the construction demand.
Insulation layer
Advanced materials and designs are used with the aim of locking the heat, keeping the bitumen at a stable temperature and improving efficiency.
Safety devices
Including explosion-proof, temperature control and emergency stop, etc. to ensure the safety of equipment and personnel.
Application of Asphalt Tank

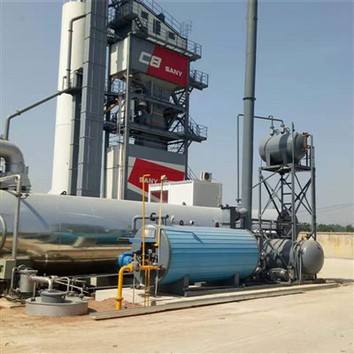

Asphalt Mixing Plant
Bitumen tank is one of the core components of asphalt mixing equipment and is used to properly store bitumen on-site, continuously supplying the pavement material producing device with the required base bitumen to enable the production of high-quality asphalt mixtures.
Bitumen Refining and Distribution
Bitumen tanks are the key to receiving, storing and delivering bitumen, thereby facilitating a smooth and efficient bitumen supply chain.
Building and Waterproofing
Bitumen is a key material, whether for paving roads, building car parks or waterproofing roofs. Bitumen tanks provide the required bitumen at the construction site at any time to make sure the construction progress and quality.
Asphalt Tank Customization Options
Options & features
Custom storage tanks can be provided with support saddles and/or multiple compartments dependent upon customer requirements.
Accessories & add-ons
We can also custom fabricate OSHA compliant caged ladders, platforms, and catwalks. These accessories can be provided with a variety of finishes and colors including prime painted only, two-part Acrylic enamel or epoxy top coats, or hot dipped galvanizing.
Additional options
Other tank options available include: Internal and external coatings, polished stainless steel finishes, internal heating/cooling coils, half-pipe jackets, dimpled jackets, heat tape systems, submersible or dry well heaters just to name a few.
After-Sales Service
Most convenient transport and prompt delivery.
Training how to install the tank, training how to use the equipment.
Warranty for 12 months.
Life-long maintenance.
Our Certifications
FAQ
We're professional asphalt tank manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy asphalt tank at competitive price from our factory. Contact us for quotation.

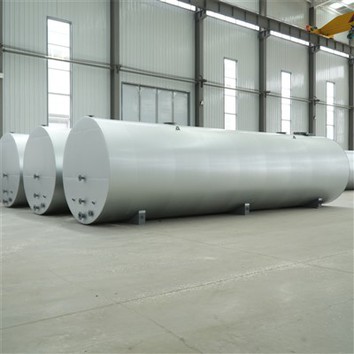

Bitumen Emulsion Tank,
